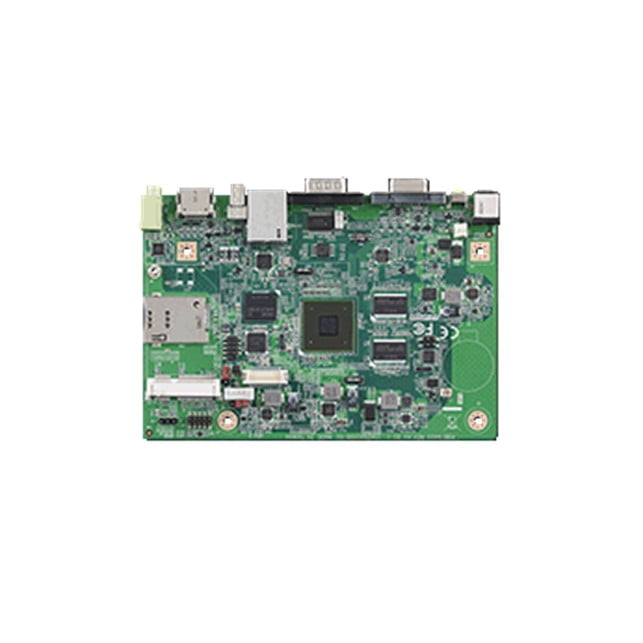

Jual Advantech Freescale ARM Cortex-A9 i.MX6 dual core SBC with 1GB DDR3, 0~60C (RSB-4410CD-MDA1E)

Advantech Freescale ARM Cortex-A9 i.MX6 dual core SBC with 1GB DDR3, 0~60C (RSB-4410CD-MDA1E)

Category	Attribute	Value
Display	Graphic Engine	2 IPUs. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1
Display	H/W Video Codec	Decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP Encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP
Display	HDMI	1920 x 1080
Display	LVDS	18/24-bit single channel LVDS
Display	VGA	1
Form Factor	Form Factor	3.5″ SBC
I/O	Audio	1x Line-out
I/O	PCIe	1 PCIe 1 Lan
I/O	SDIO	1 SD card slot
I/O	Serial port	1 x 4 wires RS232,DB9 and 2 x 2 wires RS232, pin header
I/O	USB	1 X USB Type A and 2 x USB pin header
Memory	Capacity	On-board DDR3 1 GB
Memory	Flash	4 GB eMMC for O.S. and 4 MB NOR Flash for Advantech boot loader
Memory	Technology	DDR3 1066 MHz
Processor	CPU	Freescale i.MX6 Dual Cortex-A9 1GHz
Power	Power Supply Voltage	+12V
Ethernet	Chipset	Freescale i.MX6 integrated RGMII
Ethernet	Speed	1 10/100/1000 Mbps
Watchdog Timer	WatchDog Timer	Control by SW
Certification	EMC	CE/FCC Class B
RTC	RTC	Yes
